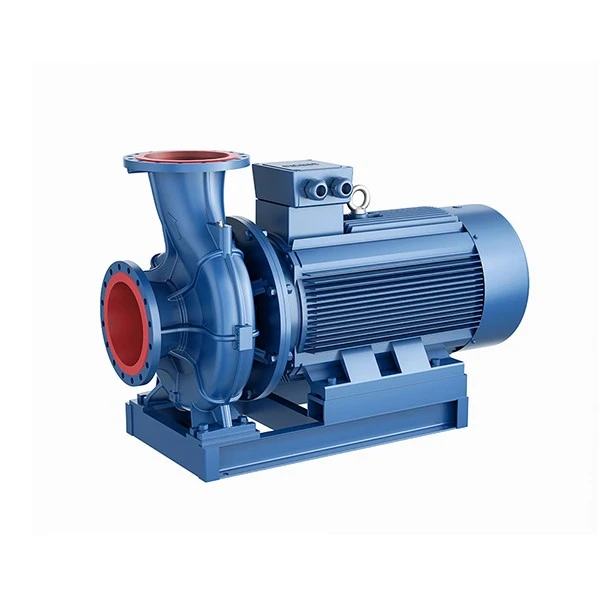

Ib theem kab rov tav centrifugal twj tso kua mis
Qhov siab: 9-80m
Caliber: Tsawg dua lossis sib npaug li 500mm
Lub Zog: 3-160kw
Nruab nrab kub: -20℃~ 120℃(siab tshaj 80 degree, thov qhia)
Khoom siv: cam khwb cia hlau / hlau hlau / cam khwb cia hlau / stainless hlau, thiab lwm yam
Hauj lwm lawm
Kev tsis
Ib theem kab rov tav centrifugal twj tso kua mis
Ib qho -theem kab rov tav centrifugal twj tso kua mis yog kab rov tav ib zaug -theem ib zaug- suction centrifugal twj nruab nrog lub tshuab hluav taws xob. Tsim los rau ntau yam kev lag luam thiab kev lag luam kev siv, kab rov tav configuration muab hloov tau yooj yim installation txoj kev los xyuas kom meej seamless kev koom ua ke rau hauv koj cov uas twb muaj lawm system. Nws muaj cov yam ntxwv ntawm cov qauv yooj yim, me me, lub neej ntev, tsis tshua muaj suab nrov, kev ua haujlwm siab thiab kev saib xyuas yooj yim. Txawm hais tias koj xav tau dej thiab kev khiav dej num, tswj qhov kub thiab txias nrog HVAC systems, thauj cov kua, irrigate teb thiab lub vaj, los yog kho cov dej khib nyiab, ib qho -theem kab rov tav centrifugal twj tuaj yeem ua tau raws li koj xav tau.
Khoom Parameter
| Customized kev them nyiaj yug | OEM, ODM, OBM |
| Hwj chim Source | Hluav taws xob |
| Hom Lub Npe | HNYB |
| Qauv | Tib -stage Pump |
| Qhov Chaw Keeb Kwm | Henan, Suav |
| Hwj chim | 3-160 kWm |
| Qhov hluav taws xob loj | Tsawg dua los yog sib npaug li 500mm |
| Ntws | 1.1-1450m³/ h |
| Lub taub hau | 9-80m |
| Khoom siv | Cam khwb cia hlau / ductile hlau / cam khwb cia hlau / stainless hlau |
Cov khoom Video
daim ntawv thov
- Kev ua haujlwm mining:Tib -theem kab rov tav centrifugal twj tso kua mis ua lub luag haujlwm tseem ceeb hauv kev ua haujlwm mining rau dewatering, slurry hloov, thiab dej. Txawm hais tias hauv av lossis qhib - qhov mining, lawv tuaj yeem ua haujlwm hnyav thiab hloov dej, slurry, thiab lwm yam kua dej uas yuav tsum tau ua hauv cov txheej txheem mining.
- Kev tsim hluav taws xob:Tib -theem kab rov tav centrifugal twj tso kua mis zoo haum rau kev siv hluav taws xob tsim hluav taws xob, muab kev ua tau zoo hauv cov dej ntws, condensate pumping, thiab lwm yam dej hloov dej. Lawv durability thiab efficiency xyuas kom meej lub lag luam du ntawm lub hwj chim tsim chaw.
- Kev kho dej:Ib qho -theem kab rov tav centrifugal twj yog ib qho tseem ceeb hauv cov ntawv thov kev kho dej, ua kom ntseeg tau cov dej thiab tshuaj lom neeg thoob plaws hauv cov txheej txheem kho. Lawv rugged kev tsim kho thiab kev sib raug zoo nrog ntau hom kua dej ua rau lawv haum rau ntau yam kev kho dej.
- Khoom noj khoom haus thiab dej haus kev lag luam:Hauv kev lag luam khoom noj khoom haus thiab dej haus, lawv tau siv rau kev hloov pauv cov dej xws li cov khoom sib xyaw, cov khoom lag luam, thiab CIP (kev ntxuav hauv qhov chaw).
Khoom nta
1. Kev hloov pauv dej tau zoo: Ib qho -theem kab rov tav centrifugal twj tso kua mis ua tau zoo hauv kev hloov cov kua dej. Nws ib leeg -stage impeller tsim kom ntseeg tau tias tus nqi ntws zoo sib xws rau kev hloov pauv dej hauv ntau yam kev siv.
2. Zog-txuag: tsom rau kev ruaj khov, nws siv cov qauv hydraulic siab heev thiab siab- cov motors ua haujlwm kom txo tau lub zog siv. Los ntawm kev ua kom zoo tshaj plaws ntawm lub twj tso kua mis, nws txo cov nqi khiav lag luam thiab ua tiav kev ua haujlwm ntsuab thiab ntau tus phooj ywg ib puag ncig.
3. Rugged thiab ruaj khov: Ua kom tiv taus qhov hnyav ntawm ib puag ncig hnyav. Nws siv siab - cov ntaub ntawv zoo thiab cov qauv tsim kom ntseeg tau ntev - kav ntev thiab kev ntseeg tau. Lub twj tso kua mis muaj peev xwm tswj tau cov xwm txheej hnyav thiab txuas ntxiv ua haujlwm ruaj khov thaum txo qis qhov xav tau kev saib xyuas.
4. Kev ua haujlwm ntsiag to: suab nrov thiab kev co tuaj yeem cuam tshuam thiab cuam tshuam rau cov neeg siv kev nplij siab. Ib qho -theem kab rov tav centrifugal twj tso kua mis yog tsim los kom nyob ntsiag to kom txo cov suab nrov thiab kev co.
5. Kev tuav dej ntau yam: Nws muaj ntau yam zoo heev hauv kev tuav cov kua dej sib txawv. Nws muaj nyob rau hauv ntau yam ntaub ntawv, xws li stainless hlau, cam khwb cia hlau thiab bronze, kom ntseeg tau zoo heev compatibility nrog ntau yam kua.
Daim ntawv pov thawj khoom
ISO 9001 Cov Ntawv Pov Thawj
ISO 14001
ISO45001
CE Daim Ntawv Pov Thawj
Daim ntawv pov thawj EAC khoom
Verified Supplier
Peb qhov chaw nyob
Zhaogang Industrial Park, Fengqiu, Xinxiang, Henan, Suav
WhatsApp Number
+86 158 3619 1545
E -mail
sales@hnybpumps.com
FAQ
01. Koj tus MOQ yog dab tsi?
02. Koj nqe lus them nqi dab tsi?
03. Koj puas muaj daim ntawv pov thawj dab tsi?
04. Koj puas yog Chaw Tsim Khoom lossis Chaw Lag Luam?
05. Koj puas tuaj yeem ua OEM Hom?
06. Lub sijhawm xa khoom yog dab tsi?
Cim npe nrov: Tib theem kab rov tav centrifugal twj tso kua mis, Tuam Tshoj ib theem kab rov tav centrifugal twj tso kua mis manufacturers
Khoom parameters
| Lub taub hau: | 9-80m |
| Lub zog: | 3-160 kWm |
| Qhov hluav taws xob loj: | Tsawg dua los yog sib npaug li 500mm |
| Tus nqi ntws: | 1.1-1450m³/ h |
| Nruab nrab kub: | -20℃~ 120℃(siab dua 80 degree, thov qhia) |
| Khoom siv: | cam khwb cia hlau / ductile hlau / cam khwb cia hlau / stainless hlau, thiab lwm yam |
| Ua haujlwm siab tshaj plaws: | 1.6MPa (200 thiab qis dua caliber), 1.0MPa (siab dua 200 caliber) |
| Inlet siab: | Tsawg dua lossis sib npaug rau 0.3MPa (xws li thaum xaj tshaj 0.3MPa) |
| Scope ntawm kev siv: | Dav siv rau kev thauj cov dej huv thiab lwm yam kua nrog lub cev thiab tshuaj lom neeg zoo ib yam li cov dej huv, tsim cov dej hauv tsev, cov kav dej hauv cov kav dej, kev lag luam thiab cov dej hauv nroog thiab cov dej ntws; Petroleum khoom xws li roj av, diesel, thiab roj av, los yog kua uas muaj corrosive los yog tshwj xeeb tshuaj. |
